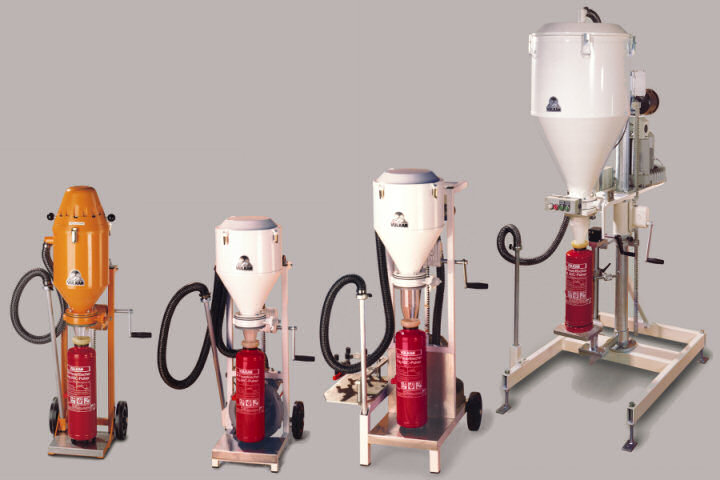

VULKAN Products for Powder Refilling

Filling output:	UP 07-6	UP 05-5	UP15-5	UP 02-5
6-kg-container	15	35	40	50	pcs./h
12-kg-container	8	20	25	30	pcs./h
50-kg-container	2	3	4	6	pcs./h
250-kg-container	--	1	1	1	pcs./h
Conveying capacity	140	250	300	600	kg/h
Storage capacity	12	12	12	50	kg
Filter range	0,50	1,00	1,00	1,50	m²
Reversing	counter air manual	counter air electrical	counter air electrical	counter air electrical
Compressor type	radial compressor	gas ring compressor	gas ring compressor	gas ring compressor
Suction performance	max. 190	max. 210	max. 220	max. 220	mbar
Motor performance	1,0	0,8	1,5	1,5	kW
*Operating time*	60 %	100 %	100 %	100 %	ED
Electric supply	230V/1Ph/50Hz	230V/1Ph/50Hz	400/3/50-60	400/3/50-60	V/PH/Cy
Dimension: W x D	450 x 450	430 x 650	460 x 700	850 x 1200	mm
H min./max	900/1490	1030/1380	1250/1570	2200/2700	mm
Weight	34	60	70	200	kg
Paint	orange (RAL 2003)	white (RAL 9010)	white (RAL 9010)	white (RAL 9010)	powder- coated

Brief technical description

The purpose of our powder refilling machine is the dust free refilling of fine and finest grained powder above all for replenishing and periodic checking of powder extinguishers as well as initial filling of small series.

All our powder refilling machine are working on the same principle. By means of a suction device the powder is leaded through a strainer (1,6 mm) in the separator. There, the filter unit is separating the intake air from the powder. Because of the low porosity at high suction performance the suction air is escaping while the powder is falling in the provided container (fire extinguisher). Through steady development of our machines and accessories we are in a position both to fill mobile fire extinguishers and smaller fire extinguishing vehicles by using the preliminary separator VA 230 and also plastic containers. The complete cleaning of the whole station after the filling procedure guarantees a very long useful life of the filter unit. Beside that an immediate change of powder is possible.

The types UP 07-6 and UP 05-5 are especially suitable for mobile use in vehicles because of their small dimensions and weights and their voltage while the stationary operated stations UP 15-5 and UP 02-5 guarantee a very high suction performance thanks to their three phase current.
