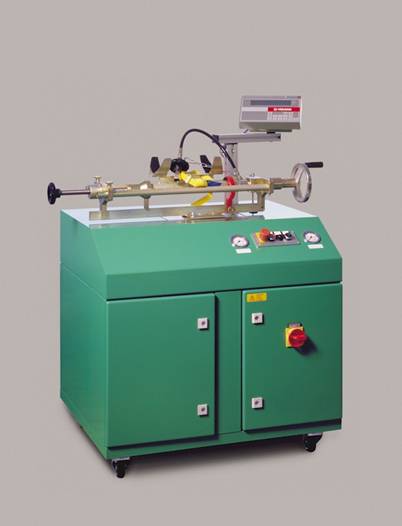

Model CM 01-6

With the CO₂ refilling unit
fast and safe clamping and
filling of all CO₂ bottles on
the market is possible.

Outside CO₂ cartridges with
turning valve and CO₂ fire
extinguishers can be filled by
means of a special clamping
device with filling adapter.

For exact dosing of the different
filling quantities our CO₂ refilling
unit is equipped with variable
filling speed.

Technical Data:
Filling performance:
0,5 - 4,0 kg/min

Power consumption:
230 V, single-phase, 50 / 60 Cy
Weight:
approx. 180 kg
Dimensions:
1300 x 800 x 1400 mm

CM01-6

Filling performance:

0,5 - 4,0

kg/min

Motor performance:

0,75

kW

Control voltage:

24

V DC

Power supply:

230 V, 1 Ph, 50 / 60 Cy

Digital balance:

max. 30

kg

Reading accuracy:

2

g

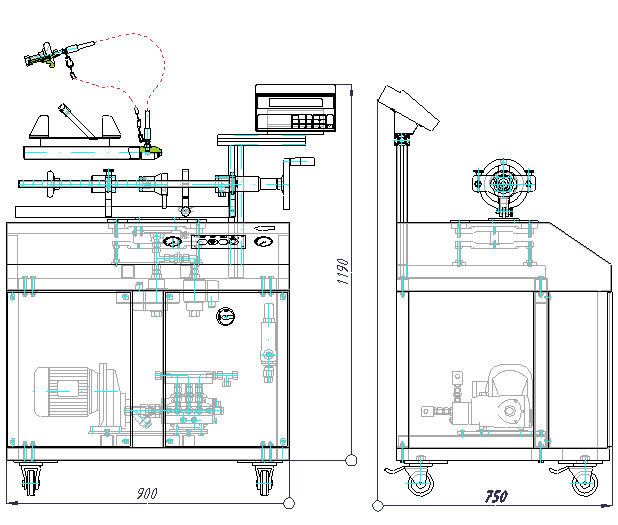

Dimensions:

900 x 700 x 1400

mm

Weight:

ca. 180

kg

Paint:

powder coated

green RAL 6000

General - brief technical description

This system serves to remove the carbon dioxide (CO₂) from a supply container to smaller containers for use, such as CO₂ cartridges for fire extinguishers or CO₂ fire extinguishers, etc. The cartridges to be filled are clamped on scales and thus filled by weight.

For the feeding of CO₂, the machine is equipped with an electrically driven pump, two solenoid valves, manometers, a safety valve and a balance on which a universal filling head with quick-acting clamping device is mounted. It permits the quick filling and safe chucking of all commercial types of CO₂ cartridges. A suitable socket is required for each valve design of inside CO₂ cartridges. As a rule, the cartridges to be filled are sealed at the bottle neck. Appropriate special filling head flanges for special forms and smaller cartridges are available.

A cylinder holder with filling connection is provided for filling CO₂ fire extinguishers as well as CO2 cartridges with rotary and lever valves. For a serial filling the attachment of a pneumatically-operated screw to close the CO₂ bottles by means of an adjustable torque is also possible. The feed line is equipped with a filter in standard execution. The system is enclosed in a wheeled housing.

Work process:

The CO₂ cartridges are manually inserted and chucked. Then the filling valve is opened by selected switch and the pump is started. When the filling weight has been reached, the pump is turned off and the CO₂ cartridge is closed by means of the locking plug and the suitable socket. Then by actuated the selected switch to release , the system is pressure-released.

The output of the machine depends on various factors. It is important that the ambient temperature does not exceed + 28 °C. For higher temperatures, we offer a refrigerator for the master bottle.

Digital floor balance
for the filling of larger CO2 cylinder
equipped with filling hose, clamping device and
automatic cut of, to connect to the filling machine.
Weighing range:    up to 150 kg
Reading accuracy: up   75 kg -   5 g
                            up  150kg - 10 g

Master bottle refrigerator
for CO2 Master bottles capacity up to 40 kg,
with dip tube and rotary valve.
Maximum size of the master bottle Ø 250 x 1700  mm

Necessary by higher ambient temperature
( more than 28 ° C )

Power supply:       230 V, 1 Ph, 50/60 Cy
